Doberu Technology Co.，Ltd.

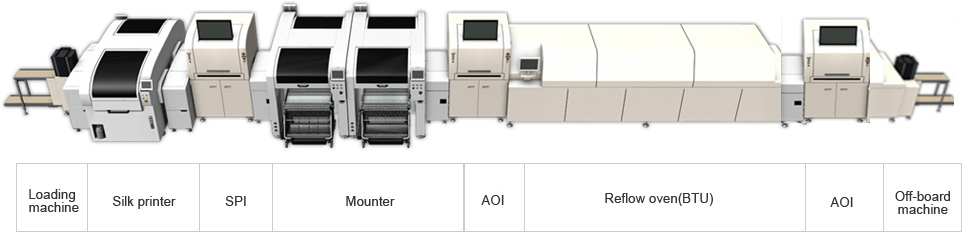

SMT standard line

Equipment	Brand	Capabilities
Silkprint	MPM/FUJI/INOTIS	Minimum land size：03015(0.3mm*0.15mm)
3D SPI	Parmi、Pemtron:Cyber optics	Minimum land size：03015(0.3mm*0.15mm)
Printing	FUJI、Siplace、Panasonic	Minimum component size： 03015 (0.3mm*0.15mm) Flip Chip： (Minimum solder bump size 68 μm ，Minimum spacing 0.13 mm) μBGA： (Minimum solder bump size 0.25mm，Minimum spacing 0.35 mm) IC lead ： (Minimum spacing 0.24mm)
Reflow	BTU、REHM、ERSA	PCB board size range：50mm-550mm
AOI	Omron、Jutze、Magic Ray	Minimum component size：01005(0.1mm*0.05mm)
Wave soldering	ERSA(Wave soldering/selective wave soldering)	PCB board size range：50mm-550mm

Doberu Technology Co.，Ltd. has advanced SMT equipment and experienced technical team to provide customers with the most reliable SMT manufacturing services.

◆ Chip minimum component 03015

◆ Flip chip 68um

◆ BGA (minimum gap of solder ball) 0.15 mm

◆ IC lead 0.12 mm

◆ Maximum PCB size 500mm * 500mm

◆ Minimum PCB size 50mm * 50mm

◆ The maximum thickness of Q PCB is 6 mm
